We found 21 results matching your criteria.

1+1 Up-Down, Diamond Tipped
Sort By:
Page of 1

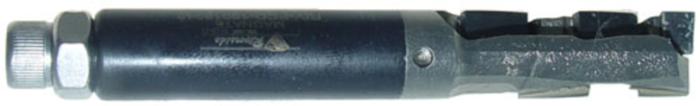

Magnate 2342 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 7/8" Cutting Height; 3/8" Shank Diameter; 2-3/4" Overall Length; no guarantee against breakage due to small diameter; 1-Flute Up-Down, Right Rotation
Magnate 2342 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 7/8" Cutting Height; 3/8" Shank Diameter; 2-3/4" Overall Length; no guarantee against breakage due to small diameter; 1-Flute Up-Down, Right Rotation
Magnate 2342 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 7/8" Cutting Height; 3/8" Shank Diameter; 2-3/4" Overall Length; no guarantee against breakage due to small diameter; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $240.73
Our Price: $216.66
Savings: $24.07
Qty Add
Magnate 2341 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2341 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2341 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $254.00
Our Price: $228.60
Savings: $25.40
Qty Add
Magnate 2344 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2344 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2344 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $265.48
Our Price: $238.93
Savings: $26.55
Qty Add
Magnate 2333 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2333 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2333 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $269.24
Our Price: $242.31
Savings: $26.93
Qty Add
Magnate 2340 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 15/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2340 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 15/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2340 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 15/16" Cutting Height; 1/2" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $269.24
Our Price: $242.31
Savings: $26.93
Qty Add
Magnate 2335 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2335 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2335 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $286.67
Our Price: $258.00
Savings: $28.67
Qty Add
Magnate 2337 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1" Cutting Height; 3/4" Shank Diameter; 3-3/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2337 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1" Cutting Height; 3/4" Shank Diameter; 3-3/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2337 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1" Cutting Height; 3/4" Shank Diameter; 3-3/8" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $286.70
Our Price: $258.03
Savings: $28.67
Qty Add
Magnate 2331 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 5/8" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2331 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 5/8" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2331 PCD 1+1 Compression Router Bit - 3/8" Cutting Diameter; 5/8" Cutting Height; 1/2" Shank Diameter; 3" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $300.10
Our Price: $270.09
Savings: $30.01
Qty Add
Magnate 2345 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2345 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2345 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $325.99
Our Price: $293.31
Savings: $32.68
Qty Add
Magnate 2347 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-1/16" Cutting Height; 5/8" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2347 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-1/16" Cutting Height; 5/8" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2347 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-1/16" Cutting Height; 5/8" Shank Diameter; 2-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $356.46
Our Price: $320.81
Savings: $35.65
Qty Add
Magnate 2343 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2343 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2343 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-3/8" Cutting Height; 1/2" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $380.00
Our Price: $342.00
Savings: $38.00
Qty Add
Magnate 2336 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-5/8" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2336 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-5/8" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2336 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-5/8" Cutting Height; 5/8" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $411.51
Our Price: $370.36
Savings: $41.15
Qty Add
Magnate 2350 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2350 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2350 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 3-3/4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $412.33
Our Price: $371.10
Savings: $41.23
Qty Add
Magnate 2334 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/4" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2334 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/4" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2334 PCD 1+1 Compression Router Bit - 1/2" Cutting Diameter; 1-1/4" Cutting Height; 1/2" Shank Diameter; 3-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $425.17
Our Price: $382.66
Savings: $42.51
Qty Add
Magnate 2351 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-5/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2351 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-5/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2351 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-5/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $434.30
Our Price: $390.87
Savings: $43.43
Qty Add
Magnate 2346 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-3/8" Cutting Height; 5/8" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2346 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-3/8" Cutting Height; 5/8" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2346 PCD 1+1 Compression Router Bit - 5/8" Cutting Diameter; 1-3/8" Cutting Height; 5/8" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $448.65
Our Price: $403.79
Savings: $44.86
Qty Add
Magnate 2348 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-1/16" Cutting Height; 3/4" Shank Diameter; 3-5/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2348 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-1/16" Cutting Height; 3/4" Shank Diameter; 3-5/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2348 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-1/16" Cutting Height; 3/4" Shank Diameter; 3-5/8" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $448.65
Our Price: $403.79
Savings: $44.86
Qty Add
Magnate 2349 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2349 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2349 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/8" Cutting Height; 3/4" Shank Diameter; 4" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $448.65
Our Price: $403.79
Savings: $44.86
Qty Add
Magnate 2338 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/4" Cutting Height; 3/4" Shank Diameter; 4-3/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2338 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/4" Cutting Height; 3/4" Shank Diameter; 4-3/8" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2338 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-3/4" Cutting Height; 3/4" Shank Diameter; 4-3/8" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $548.38
Our Price: $493.54
Savings: $54.84
Qty Add
Magnate 2332 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 2" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2332 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 2" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2332 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 2" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $560.89
Our Price: $504.80
Savings: $56.09
Qty Add
Magnate 2339 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-7/8" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2339 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-7/8" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation
Magnate 2339 PCD 1+1 Compression Router Bit - 3/4" Cutting Diameter; 1-7/8" Cutting Height; 3/4" Shank Diameter; 4-1/2" Overall Length; 1-Flute Up-Down, Right Rotation

Two Flute Up-Down Diamond Spiral Bit;RH Compression Bit

Please note: Product images are for illustrative purposes and may vary from the actual item.

PCD (Polycrystalline Diamond) tooling provides exceptional wear resistance when cutting abrasive materials. It is not recommended for hand-operated tools but performs exceptionally well in CNC woodworking applications, including cutting plastics and non-ferrous metals. When used properly, end users can expect 30 times the tool life when compared to carbide. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity Compression-style flutes help minimize chipping and delamination for cleaner, more precise cuts.

When manufacturer RPM specifications are not available, the following RPM ranges may be used as general starting guidelines for CNC woodworking applications 1) 1/4” to 3/8” diameter bits: 18,000 to 24,000 RPM 2) 1/2” to 5/8” diameter bits: 16,000 to 22,000 RPM 3) 3/4” to 1” diameter bits: 12,000 to 18,000 RPM 4) 1-1/4” to 1-1/2” diameter bits: 9,000 to 16,000 RPM 5) 2” to 2-1/2” diameter bits: 6,000 to 12,000 RPM 6) 3” diameter bits: 5,000 to 8,000 RPM RPM should be adjusted according to cutter diameter to maintain the appropriate surface (cutting) speed, while actual RPM and feed rate may vary depending on material, tool geometry, chip load, and application. Always follow the manufacturer's recommended and maximum RPM specifications. more info
List Price: $648.06
Our Price: $583.26
Savings: $64.80
Qty Add
To add the above items to your cart, click the "Add" checkboxes then click "Add To Cart" >>>



Always refer to the operation manual of your router first, in the event that a router bit doesn't come with a speed chart, you may start at about 2,000 rpm slower than the maximum speed described in the chart below. Maximum speed below is for reference only, actual best performance speed varies depending on  a number of factors i.e. size of the router bit, the material to be cut, etc.

Run 24,000 rpm maximum for 1" overall diameter router bits;
Run 20,000 rpm maximum for 1-1/2" overall diameter router bits;
Run 18,000 rpm maximum for 2" overall diameter;
Run 16,000 rpm maximum for 2-1/2" overall diameter router bits;
Run 12,000 rpm maximum for 3" overall diameter router bits;
Run 10,000 rpm maximum for 3-1/2" overall diameter router bits;

PCD (Polycrystalline Diamond) bits perform exceptionally well in CNC woodworking applications even when used on plastics and non-ferrous metals. Some examples of uses include those with panel saw blades, router bits and cutter heads, and many more. PCD tooling is not recommended for hand operated tools. PCD comprises of a polycrystalline aggregate of manufactured diamonds approximately 0.6 - 0.8mm thick bonded to a substrate of cemented tungsten carbide 1 - 2.7mm thick. The composite substance combines the hardness and high thermal conductivity of diamond with the brazeability of tungsten carbide. The micron-sized manufactured diamonds are randomly oriented to give consistent wear-resisting properties in all directions. PCD is the hardest man-made material in the world. It is excellent cutting material because it wears exceptionally well. The micron-sized manufactured diamonds of PCD are randomly oriented to give consistent wear across the cutting edge. The wear rate of PCD cutting edges is not only much less then carbide, but also much more even; PCD wears by erosion rather than edge breakdown. When used properly, end users can expect 30 times the tool life when compared to carbide; In some cases, up to 120 times the tool life. Not only does it wear evenly and increase tool life, PCD use cuts down on the end user's tool change and setup time which saves money and increases productivity
