2 Flute with Upper ball Bearing, Carbide Tipped

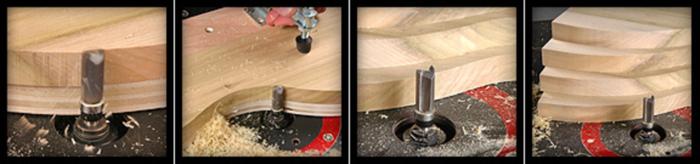

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

This carbide tipped bit is specifically designed and manufactured for the high quality precision required by woodworking industrial applications. The cutting edges of this router bit are made from high industrial grade carbide tips brazed onto a heat-treated high-carbon steel body thus leading to exceptional hardness and rigidity.

Its cutting edges are radially relieved for a strong smooth cut in addition to avoiding rubbing and burning. It is precision ground, hardened, and tempered in order to stand up to a variety of materials. It is also equipped with wide open gullets for easy disposal of wood chips.

It is suited for softwoods, hardwoods, chipboard, plywood and etc.

Note :

In order to avoid vibration and for maximum cutting quality, always choose a router bit with the shortest cutting edge and the shortest overall length available that is able to fit your project application. Excessive overall length may cause tool damage.
