Home > Amana® Tool > Amana® Router Bits > Door Making > One Piece Stile & Rail Router Bits 2-Wing With Ball Bearing Guide, Carbide Tipped
We found 1 results matching your criteria.

2-Wing With Ball Bearing Guide, Carbide Tipped

These one piece stile & rail bits are an easy and effective technique for creating cabinet door frames. You simply adjust the height of the bit accordingly in the router table to cut the profile cut (with bit lowered in the table) and the cope cut (with bit raised in the table).

Sort By:
Page of 1

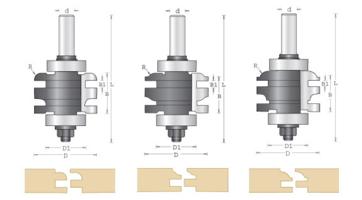

Amana 55460 One Piece Stile & Rail Router Bit - Concave Profile; 3/8" Cutting Depth; 1/2" Shank Diameter; 1-9/32" Cutting Height; 4-3/32" Overall Length; 7/32" Radius; 2" Overall Diameter; 2-Flute With Ball Bearing, Carbide Tipped
Amana 55460 One Piece Stile & Rail Router Bit - Concave Profile; 3/8" Cutting Depth; 1/2" Shank Diameter; 1-9/32" Cutting Height; 4-3/32" Overall Length; 7/32" Radius; 2" Overall Diameter; 2-Flute With Ball Bearing, Carbide Tipped
Always consult your router's operation manual before setting the RPM for your router bit.    If a router bit does not include a recommended speed chart, you may begin at approximately 2,000 RPM below the maximum speed listed in the guide below. Please note that these speeds are for reference only the optimal speed may vary depending on factors such as bit size, material type, and cutting conditions.    1) Up to 24,000 RPM for bits with an overall diameter of 1".   2) Up to 20,000 RPM for bits with an overall diameter of 1-1/2".   3) Up to 18,000 RPM for bits with an overall diameter of 2".   4) Up to 16,000 RPM for bits with an overall diameter of 2-1/2".   5) Up to 12,000 RPM for bits with an overall diameter of 3".   6) Up to 10,000 RPM for bits with an overall diameter of 3-1/2". more info

List Price: $89.65
Our Price: $64.04
Savings: $25.61
Qty Add
To add the above items to your cart, click the "Add" checkboxes then click "Add To Cart" >>>
