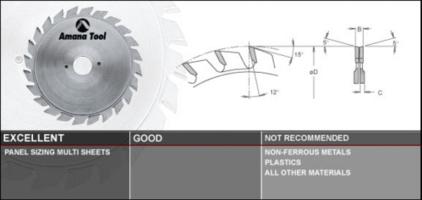

12° Hook, ATB Grind, Carbide Tipped
Application: Used on panel saws or sliding table saws with seperate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consisit of two 12-tooth saw blades with shims to adjust the kerf width (2.8MM to 3.6MM) Used in combination with Amana® industrial saw blades '6' series only.(example #614721, #616961, etc.). Note:Adjustable scoring sets with 22MM bore can be converted to either 3/4" bore by ordering two each Amana® #BU-130 bushings, or to 20MM bore by ordering two each Amana® #BU-140 bushings. Replacement 5-piece shim set (0.6MM, .10MM, .20MM (2) and 2.8MM) order no. 'Shim Set'. Will fit 20MM or 22MM scoring sets.
|
|
|
|
