Home > Magnate Router Bits & Accessories > Magnate Carbide Tipped Router Bits > Raised Panel > Raised Panel Router Bit, Vertical Ogee 2-Flute Carbide Tipped
We found 1 results matching your criteria.

2-Flute Carbide Tipped
Sort By:
Page of 1

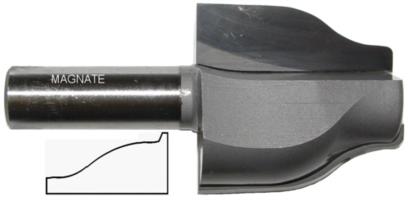

MAGNATE 3815 Raised Panel Router Bit, Vertical Ogee - 1-5/8" Cutting Height; 1/2" Shank Diameter; 1-1/8" Overall Diameter; 1-1/2" Shank Length; 2-Flute Carbide Tipped
MAGNATE 3815 Raised Panel Router Bit, Vertical Ogee - 1-5/8" Cutting Height; 1/2" Shank Diameter; 1-1/8" Overall Diameter; 1-1/2" Shank Length; 2-Flute Carbide Tipped
MAGNATE 3815 Raised Panel Router Bit, Vertical Ogee - 1-5/8" Cutting Height; 1/2" Shank Diameter; 1-1/8" Overall Diameter; 1-1/2" Shank Length; 2-Flute Carbide Tipped

Please note: Product images are for illustrative purposes and may vary from the actual item.

A carbide-tipped router bit delivers precision, durability, and smooth cutting performance for professional woodworking. Built with premium carbide edges on high-carbon steel body heat-treated as needed. it provides strength, clean cuts, and efficient chip removal when working with wood, plywood, and composites. Although designed primarily for woodworking, it can also cut non-ferrous metals such as aluminum, brass, and copper when used at reduced speeds with proper lubrication. However, dedicated end mills are recommended for regular metalworking applications. For optimal results, select the shortest bit length that meets your project needs to minimize vibration, and always secure the workpiece to ensure safety and protect both the tool and the material.
more info

List Price: $40.34
Our Price: $36.67
Savings: $3.67
Qty Add
To add the above items to your cart, click the "Add" checkboxes then click "Add To Cart" >>>



This carbide tipped bit is specifically designed and manufactured for the high quality precision required by woodworking industrial applications. The cutting edges of this router bit are made from high industrial grade carbide tips brazed onto a heat-treated high-carbon steel body thus leading to exceptional hardness and rigidity.

Its cutting edges are radially relieved for a strong smooth cut in addition to avoiding rubbing and burning. It is precision ground, hardened, and tempered in order to stand up to a variety of materials. It is also equipped with wide open gullets for easy disposal of wood chips.

It is suited for softwoods, hardwoods, chipboard, plywood and etc.

Note :

In order to avoid vibration and for maximum cutting quality, always choose a router bit with the shortest cutting edge and the shortest overall length available that is able to fit your project application. Excessive overall length may cause tool damage.
