2 Flute, Carbide Tipped

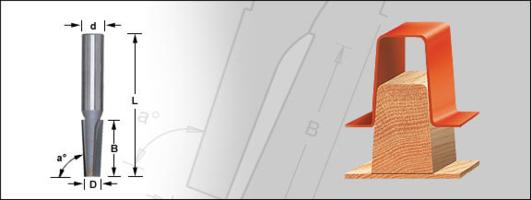

This slightly tapered bit is specifically designed for wood patternmaking, especially wood vacuum-forming molds where draft (3° taper) is required for releasing the styrene or other plastic from the mold. It can be used to bevel the leading edge on a door.

Sort By:

Page of 1

Amana 42420 Patternmakers Router Bit - 3 Degree; 3/8" Cutting Diameter; 1/2" Large Diameter; 1-1/4" Cutting Height; 3-5/32" Overall Length; 1/2" Shank Diameter; 2 Flute, Carbide Tipped, Excellent for Cutting Expanded PVC

Amana 42420 Patternmakers Router Bit - 3 Degree; 3/8" Cutting Diameter; 1/2" Large Diameter; 1-1/4" Cutting Height; 3-5/32" Overall Length; 1/2" Shank Diameter; 2 Flute, Carbide Tipped, Excellent for Cutting Expanded PVC

Always consult your router's operation manual before setting the RPM for your router bit. If a router bit does not include a recommended speed chart, you may begin at approximately 2,000 RPM below the maximum speed listed in the guide below. Please note that these speeds are for reference only the optimal speed may vary depending on factors such as bit size, material type, and cutting conditions. 1) Up to 24,000 RPM for bits with an overall diameter of 1". 2) Up to 20,000 RPM for bits with an overall diameter of 1-1/2". 3) Up to 18,000 RPM for bits with an overall diameter of 2". 4) Up to 16,000 RPM for bits with an overall diameter of 2-1/2". 5) Up to 12,000 RPM for bits with an overall diameter of 3". 6) Up to 10,000 RPM for bits with an overall diameter of 3-1/2".
