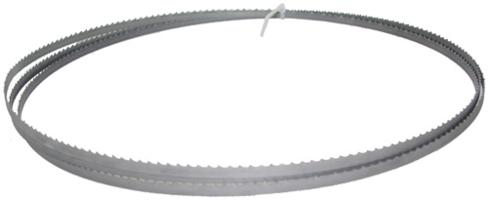

All Magnate (TM) bandsaw blades are welded and fabricated in the USA. The coils/material are USA brands but may not be made in the USA. All band saw blades’ pictures depict a general bandsaw blade and thus may look different from each particular item.
Bi-Metal band saw blades are designed to work with a woodworking saw at a speed range of 800-3,500 fpm to cut plastics, all types of woods ( especially ideal for hard woods i.e. oak, maple, walnut or cherry), plastics, and non-ferrous metals (aluminum, copper, brass, etc).
To cut ferrous metal (i.e. carbon steels, light alloy steels, mold steels, and tool steels), you must only use a metal-cutting bandsaw, at a speed range of 40 - 200 fpm.
The following is a guideline for choosing an adequate tooth pattern to cut metal materials, Use
* 20 - 24 variable to cut 1/16" to 1/4" thick material, * 14 - 18 variable to cut 1/8" to 3/8" thick material, * 10 - 14 variable to cut 3/16" to 7/16" thick material, * 8 - 12 variable to cut 1/4" to 1/2" thick material, * 6 - 10 variable or 6 Hook to cut 5/16" to 5/8" thick material, * 5 - 8 variable or 6 Hook to cut 3/8" to 1" thick material, * 4 - 6 variable or 6 Hook to cut 1/2" to 2" thick material, * 3 - 4 variable or 4 Hook to cut 3/4" to 4-1/2" thick material, * 3 Hook to cut 1" to 6" thick material, * 2 Hook to cut 2" to 12" thick material.
The following bandsaw models use 93 inch ( 7 ft. 9 inch, 7' 9" ) long bandsaw blades.
Sears Craftsman Professional 7" x 12"; Dayton 5Z412 6" x 10", Wilton 3400 6" x 10"; Grizzly G0580X, G0555X (92-1/2" to 93-1/2"), G1758 7" x 12",G9978 7" x 12"; Enco 137-3163, 137-3167, 137-3169, 137-3171, 137-3175, 137-3178, 137-3190, 137-3195, 137-2000, Swivel Head, 240-7179; Black and Decker 1752; Delta 28-243, 28-283,28-203, 28-303, 28-240; JET HVBS-7M, HVBS-7MW, J-3410 7" x 12"; Dake SE712; General International 90-740 M1; 90-700 M1; 90-725 M1; 90-730 M1; Wellsaw 58BD, 58BW (6-1/.2" x 9-1/2" ); Northern Industrial 8” Model TH203-004; Roll In; Turn Pro Swivel Head;
